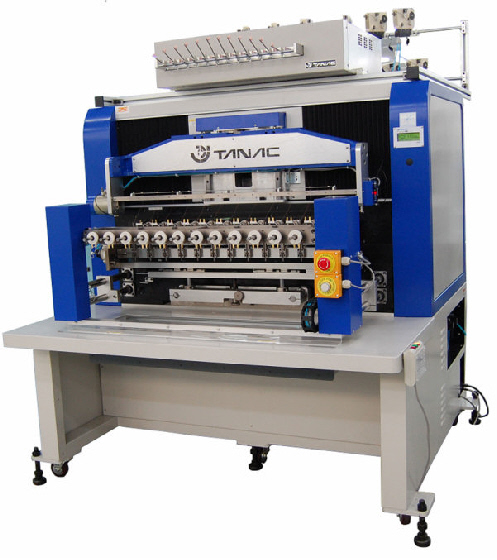

MXC88 Coil Winding Machine

Description



The MXC88 is a fully automatic 4-axis CNC multi-spindle coil winding machine which will terminate and wind the wire on the component.



The balanced design structure of the MXC series allows for high speed production while maintaining quality and reliability through minimum vibration.



AC servo motors give fast and reliable positioning of the spindle and wire guide.



TNK's F1 controller with PC interface gives a graphical programming environment that will be familiar for any computer user and machine programmer.



It is possible to build up the automation line by using our quick loading/un-loading and the tooling transfer system.



Many other options are available including interleave and cover taping unit, air cutter unit, wire skeiner unit, wire stripper unit, and tailstock.



Specification





Number of Spindles

6

8

12

16

Spindle Pitch

145mm

110mm

72mm

55mm

Maximum Bobbin Outer Ø

130mm

95mm

57mm

40mm

Maximum Winding Width

150mm

Winding Wire Range

0.02 ~ 0.4mm*

Spindle Speed

16,000/10,000/4,000rpm (choice)

Spindle Positioning

Programmable every 1° : Lock every 18°

Maximum Traverse Speed

250mm/s

Movement of Traverse

X (left/right) : 150mm / Y (front/rear) : 150mm

Z (up/down) : 110mm

Direction of Traverse

Horizontal / Vertical / +45°

Power Supply

230VAC 50/60Hz single phase

Power Requirement

3300W

Air Pressure

0.49 ~ 0.59MPa

Dimensions

1,475 (W) x 1,475 (D) x 1,800 (H) mm

Weight

850kg

Top.
Contact.

* larger wire by option with spindle motor upgrade and air cutters
