Description

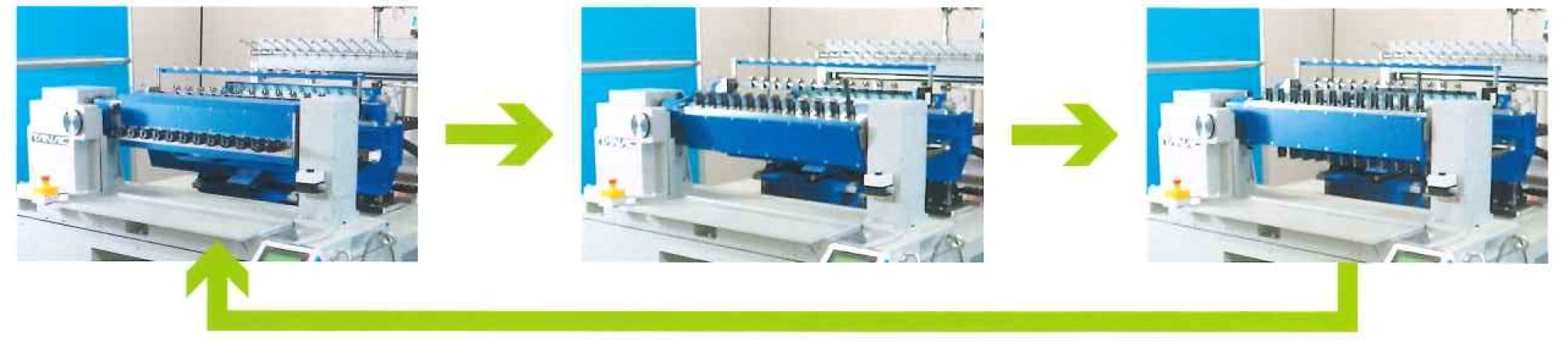

It’s back! An update on the classic AW machines with the revolving spindle box which gives you the possibility of reducing load/unload downtime during production to just two seconds.

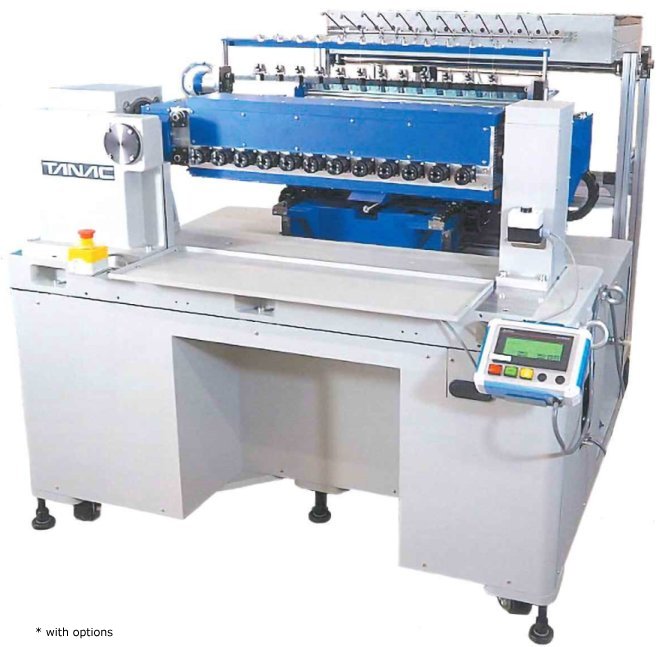

The LX72 is a fully automatic 4-
The balanced design structure of the LX series allows for high speed production while maintaining quality and reliability through minimum vibration.
AC servo motors give fast and reliable positioning of the spindle and wire guide, as well as the positioning of the wire holders for maximum efficiency.
TNK's F1 controller with PC interface gives a graphical programming environment that will be familiar for any computer user and machine programmer.
It is possible to build up the automation line by using our quick loading/un-
Many other options are available including interleave and cover taping unit, air cutter unit, wire skeiner unit, wire stripper unit, and tailstock.
Specification
Number of Spindles |
8 |
12 | ||
Spindle Pitch |
90mm |
60mm | ||
Maximum Bobbin Outer Ø |
80mm |
50mm | ||
Maximum Winding Width |
140mm | |||
Winding Wire Range |
0.02 ~ 0.55mm* | |||
Spindle Speed |
10,000 | |||
Spindle Positioning |
Programmable every 1° : Lock every 18° | |||
Maximum Traverse Speed |
250mm/s | |||
Movement of Traverse |
X (left/right) : 100mm / Y (front/rear) : 140mm Z (up/down) : 70mm | |||
Direction of Traverse |
Horizontal / Vertical / +45° | |||
Power Supply |
200VAC 50/60Hz 3-phase | |||
Power Requirement |
3300W | |||
Air Pressure |
0.49 ~ 0.59MPa | |||
Dimensions |
1,400 (W) x 1,465 (D) x 1,800 (H) mm | |||
Weight |
800kg |
* larger wire by option with spindle motor upgrade and air cutters
