Introduction

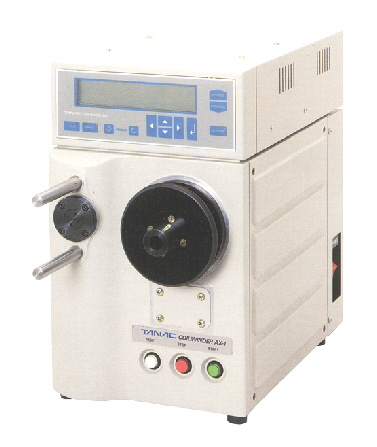

The AX1 is a general purpose coil winding machine suitable for many types of products.
The spindle speed is set directly in the program. Acceleration and deceleration speed are also set in the program making it unnecessary to set a separate braking turns counter. The 400W variable speed induction motor with Pulse Width Modulation (PWM) control is standard.
A servo motor gives accurate wire guide traverse positioning with continuously monitored feedback. A maximum traverse speed of 80mm/s makes the AX1 machine suitable for most pitch winding applications. Traverse adjustment function allows the machine operator, without stopping the spindle rotation, to correct the wire guide traverse position during winding when it runs ahead or runs behind the wire position.
Programming is easily made through the on-
Connection to a personal computer through the USB port is used to up load and down load programs for extra program storage and editing.
The GPIO input/output port allows you to sequence the operation of the winder with accessories such as heaters, skeiners and others.
Specification
Maximum Bobbin Outer Ø |
150mm |
Maximum Winding Width |
100mm |
Winding Wire Range |
0.018 ~ 2.0mm |
Spindle Motor - standard |
Induction motor 400W |
Spindle Speed - choice |
10,000rpm><4,000rpm><1,400rpm 3-step pulley |
|
1,400rpm synchro pulley |
Spindle Motor - option |
AC servo motor 400W |
Spindle Speed - choice |
1,500rpm or 3,000rpm or 5,000rpm or 10,000rpm max. |
Traverse Motor |
DC Servo motor 35W |
Maximum Traverse Speed |
80mm/s |
Traverse Pitch |
0.001 ~ 9.999mm |
Internal Memory |
13,000 pages in 500 programs |
Input Method |
Sheet switch / PC software |
Display |
4 line LCD with backlight |
External Interface |
USB for program transfer. 8 bit IO sequencer |
Safety Cover |
Not available |
Power Supply |
230VAC 50/60Hz single phase |
Power Requirement |
600W |
Dimensions |
450 (W) x 300 (D) x 400 (H) mm |
Weight |
35kg |
