Description



TNK is the original designer of the PATENTED magnet tension unit for coil winding. The tension from traditional friction type tension units can vary after a short time giving inconsistent winding characteristics.



The high quality Japanese magnet system in the TNK units ensures the set tension remains constant and stable which improves product quality and overall efficiency. This magnet system works together with the tension bar to prevent any sudden change in the tension when winding non-round shaped coils.

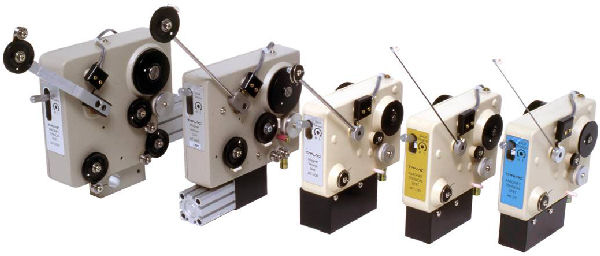

The BC models use a pneumatic cylinder to control the tension bar spring. This is a benefit when working on CNC winding machines where you want to de-tension the wire during terminal wrapping or pull the wire tight for reverse movements.



The various models cover a small range of tension values to give fine control of tension adjustment for more accurate setting.



Specification

Model

MT20/P

MT20

MT100

MT300

MT800

MT2000

MT20BC/P

MT20BC

MT100BC

MT300BC

MT800BC

MT2000BC

Tension (g)

3 ~ 18

5 ~ 20

12 ~ 100

30 ~ 300

100 ~ 800

250 ~ 2000

Wire (mm)

0.015 ~ 0.04

0.02 ~ 0.05

0.04 ~ 0.12

0.058 ~ 0.2

0.12 ~ 0.37

0.18 ~ 0.7

Wire speed max. (m/s)

10

10

10

10

8

8

Dimensions

140x140x70

140x140x70

140x150x70

140x150x70

175x175x85

210x150x85

Weight (g)

740

740

770

850

1,650

2,200
