PX01/SS Series Winding Machine
Bobbinless winding machine with spindle traverse
A unique winding method is used to achieve aligned winding for a wide variety of coils. Non-bonded wire coils are fixed in place manually with tape.
A unique winding method is used to achieve aligned winding for a wide variety of coils. Non-bonded wire coils are fixed in place manually with tape.
| PX01/SS | |
|---|---|

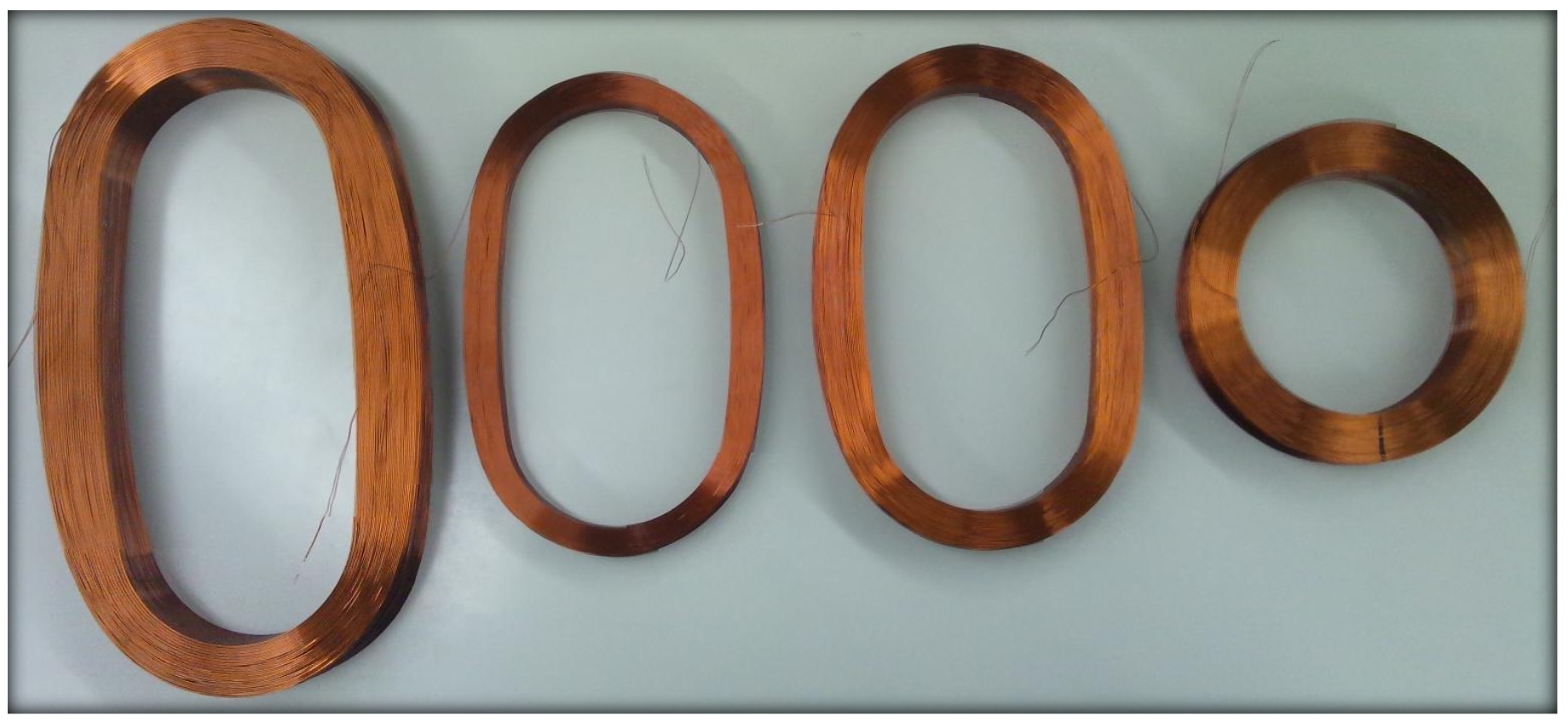

| Winding target | Clutch coils, brake coils etc. |
| Number of spindle axes | 1 spindle |
| Spindle pitch | |
| Spindle speed | Maximum 6,000 rpm |
| Winding wire size range | Ø0.1 to 1.5 mm (Please consult us with product specification) |
| Maximum winding diameter | 140mm |
| Maximum winding width | 0–100 mm (Maximum stroke length 100 mm) |
| Wire-cut method | Wire Cut-and-Hold Unit (Option Air Nipper Unit) |
| Tensioning device | Magnetic / Pulse Motor / AC Servo Motor Tension Device (Option) |
| Workpiece Supply & Discharge | Manual loading / unloading (Option automatic loading / unloading) |
| Safety protection | Various options according to regulations |
| Power supply voltage (AC V) | φ1 AC200 ～ 230V ±10% 50Hz/60Hz |
| Air supply pressure (MPa) | 0.5MPa (0.49 ～ 0.59) |
| Dimensions (mm) | 760(W) 1030(D) 1500(H) |
| Mass | 250kg |
| Driving Controls & Units | Touch Panel / F1 Controller |
