This machine is dedicated to continuous production of clutch coils. It is equipped with an electric bonding device, an insulation removal device, an end forming device, and a discharge unit.
| CLC02/CLC03 | |
|---|---|

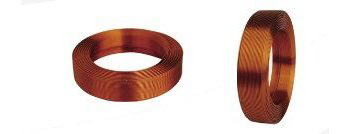

| Winding target | Clutch coil |
| Number of spindle axes | 1 spindle |
| Spindle pitch | |
| Spindle speed | Maximum 3,000/6,000 rpm |
| Winding wire size range | Ø0.1 to 3.0 mm (Please consult us with product specification) |
| Maximum winding diameter | Please consult us with product specification |
| Maximum winding width | Please consult us with product specification |
| Wire-cut method | Automatic |
| Tensioning device | Magnetic / Pulse Motor / AC Servo Motor Tension Device (Option) |
| Workpiece Supply & Discharge | Automatic unloading |
| Safety protection | Various options according to regulations |
| Power supply voltage (AC V) | φ1 AC200 ～ 230V ±10% 50Hz/60Hz |
| Air supply pressure (MPa) | 0.5MPa (0.49 ～ 0.59) |
| Dimensions (mm) | 600(W) 1000(D) 680(H) |
| Mass | 500kg |
| Driving Controls & Units | Touch Panel / F1 Controller |
