| ALF03 |
| Winding target |

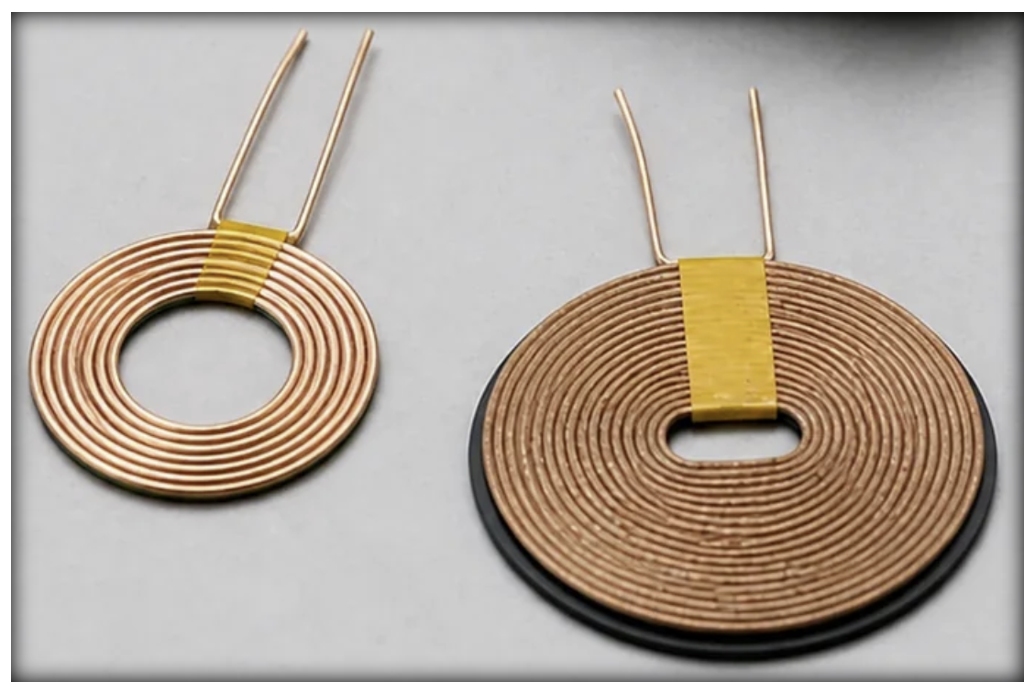

Alpha coils |
| Number of spindle axes |
1 spindle |
| Spindle pitch |
|
| Spindle speed |
Maximum 3,000 rpm |
| Winding wire size range |
Ø0.1 to 3.0 mm round, square, rectangular |
| Maximum winding diameter |
Please consult us with product specification |
| Maximum winding width |
Please consult us with product specification |
| Wire-cut method |
Automatic |
| Tensioning device |
Magnetic / Pulse Motor / AC Servo Motor Tension Device (Option) |
| Workpiece Supply & Discharge |
Automatic unloading |
| Safety protection |
Various options according to regulations |
| Power supply voltage (AC V) |
φ1 AC200 ～ 230V ±10% 50Hz/60Hz |
| Air supply pressure (MPa) |
0.5MPa (0.49 ～ 0.59) |
| Dimensions (mm) |
600(W) 1000(D) 680(H) |
| Mass |
120kg |
| Driving Controls & Units |
Touch Panel / F1 Controller |
