Description

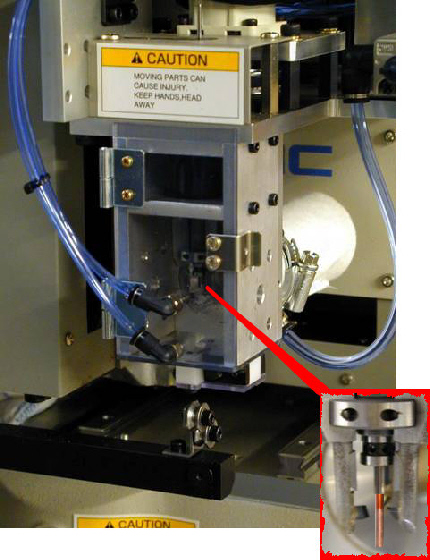

Adjustable stripper blades allow precise control over the wire insulation layer.
Diamond blades give a strong cutting edge and exceptional wear resistance.
Programmable stripper rotation speed gives extra control over the insulation removal.
Built-
The programmable dust removal reduces noise levels and power requirements.
Specification
Winding Wire Range |
0.20 ~ 0.75mm |
0.75 ~ 1.00mm (option) | |
Spindle Motor |
AC Servo 100W |
Spindle Speed |
10,000rpm |
Power Supply |
100 / 230VAC 50/60Hz single phase |
Power Requirement |
150W |
Air Pressure |
0.49 ~ 0.59MPa |

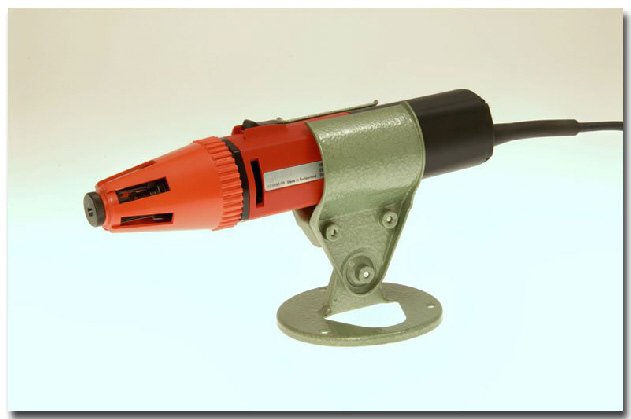

A hand-
This unit has built in speed control and can be supplied with accessories like bench mount, footpedal, and wire guide.
