Description



The TX series of skeiners (twisters) use reliable servo drives for both the wire skeining and twisting functions. Skein and twist counts as well as speed are set through simple dial controls* or program commands.



The simplified mechanical layout makes wire threading easy and reduces changeover times. Various signal options allow the units to be connected to many machine types.

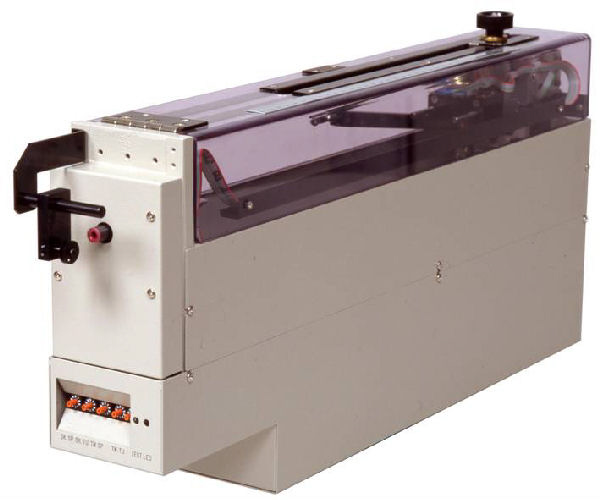

The TX1 single spindle unit can also be daisy-chained together to make up multiple units to accommodate all spindle pitches on multi-spindle winding machines.

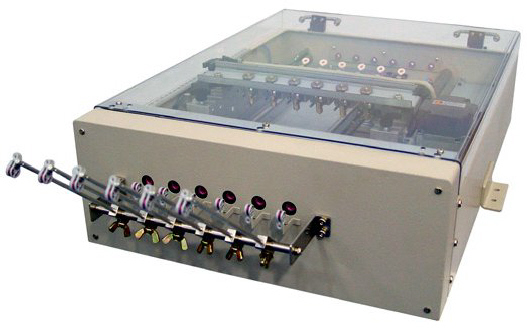

Versions of the TX series are available for 4, 6, 8, 12, and 16 spindle winding machines.































Specification

Winding Wire Range

0.018 ~ 0.15mm

Skein Length

100 ~ 350mm

Number of Skein

1 ~ 9 x* (1~5 other models)

Skein Speed

1 ~ 6s / 1 skein

Skein / Twist Motor

DC Servo 15W*

Number of Twist

10 ~ 990 x

Twist Speed

500 ~ 5,000rpm

Power Supply

100 / 230VAC 50/60Hz single phase

Power Requirement

500W

Dimensions

100 (W) x 460 (D) x 600 (H) mm*

Weight

13kg*

Contact.

*TX1 Model
