Description

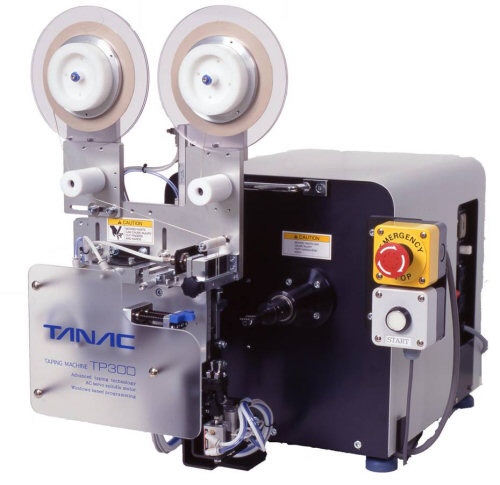

The TP300 taping machine is available in two versions -
- TP300B for barrier or margin taping
- TP300C for cover taping
Either version can also be converted to give the other function through the purchase of additional parts.
The AC servo motor gives quick and accurate positioning of the tape start / end position.
|
Coil Outer Ø for Taping |
4 ~ 40mm |
|
Maximum Bobbin Outer Ø |
70mm |
|
Width of Cover Tape |
3 ~ 40mm |
|
Width of Barrier Tape |
1.6 ~ 8mm |
|
Tape Supply Reel |
Inner 3”, Outer 6” |
|
Spindle Speed |
1,000rpm |
|
Spindle Motor |
AC Servo 200W |
|
Safety Cover |
Left / Right Opening |
|
Power Supply |
230VAC 50/60Hz single phase |
|
Power Requirement |
400W |
|
Air Pressure |
0.49 ~ 0.59MPa |
|
Dimensions |
450 (W) x 680 (D) x 450 (H) mm |
|
Weight |
30kg |
Connection to a personal computer through the RS232C port is used to up load and down load programs for extra program storage capacity.
Programming is made easy through the on-
