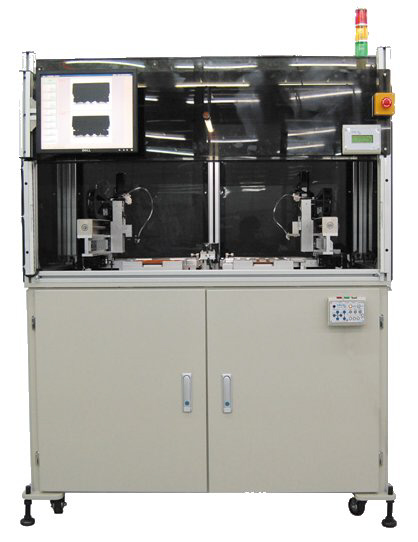

Description



Fast speed, High precision, Lower cost. Inspection Objects include: Electronic parts (such as electric transformer, inductor, electric capacitor, IC chip, etc.), glass, LCD panel, label, and printed items, etc.



Using the contrast method of photographic imagery to check and test exterior condition and sizes of precise parts, the TMC series has gained great achievement in the parts production area.



Along with the higher requirements on the exterior condition and sizes of products, the traditional inspection methods such as manual visual inspection, magnifying glass, tool microscope, and projector, are far from reaching these requirements.



With fast speed and high precision, the visual inspection equipment has higher cost performance comparing with traditional manual.



Inspection Items



• External size of electronic parts (for example: SMT transformer)
• Pin Co-planarity
• Pin Distance
• Pin Width
• Parallelism of upper surface of the part
• Mark inspection
• Surface defects of the parts
• Textual errors of the printed matter
• Inspection items can be added according to specific requirements



Features



• High precision: Repeatability accuracy is less than 10 microns.
• High speed: For example, if each part needs five images with 800,000 pixels, the time for shot and treatment is less than 0.7 seconds.
• Simple setting: Parameter needs not to be set; only the search area needs to be selected.
• Compatible with multi-products: A set of equipment can test many kinds of products with similar sizes.
• Automatic image and inspection result data saving.
• Statistical report on inspection data can be printed.



Example



Take the Surface Mounting Coil as example, according to requirements of the customer:

• Automatic loading with feeder
• Electric appliance property inspection can be divided into many stations according to requirements (Dielectric strength test, continuity test, turns ratio test, leakage test)
• Defective products classified and separated by appliance test
• Sampling of qualified product samples

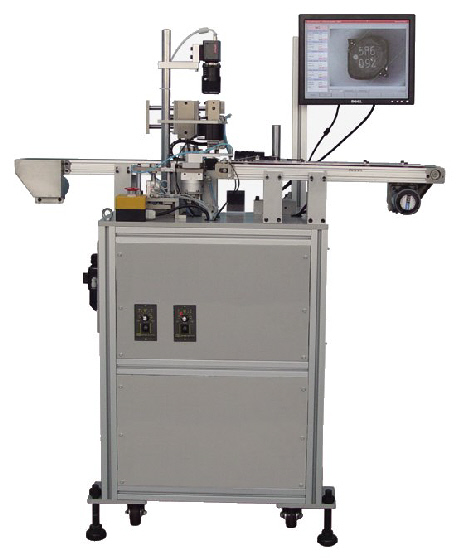

• External size Inspection using CCD camera (Shot can be done with several cameras and several stations)
• Automatic rejection
• Tape packing
• Automatic image and Inspection result data saving
• Statistical report on inspection data
• Attached three-dimensional image
