Description

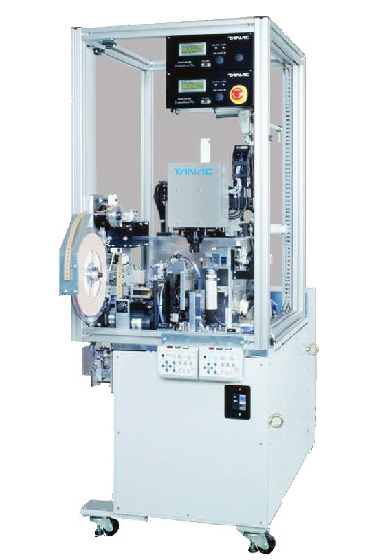

The TCW is a fully automatic CNC winding machine for air coils.
The balanced design and structure of the TCW machine allows for high speed production while maintaining quality and reliability through minimum vibration.
Easy change tooling allows short changeover times between different product specifications.
TNK's G2 controller with PC interface gives a graphical programming environment that will be familiar for any computer user and machine programmer.
Many options are available including bonding, tailstock, forming, testing, packaging, and wire stripper unit.
Specification
|
Coil Inner Ø |
1 ~ 10mm |
|
Lead Length |
5 ~ 30mm |
|
Winding Wire Range |
0.2 ~ 0.6mm (1.3mm by discussion) |
|
Spindle Motor |
AC Servo 400W |
|
Spindle Speed |
3,000rpm |
|
Traverse Motor |
AC Servo 100W |
|
Maximum Traverse Speed |
250mm/s |
|
Traverse Pitch |
Up to 6.5mm |
|
Movement of Traverse |
X : 100mm / Y : 150mm / Z : 50mm |
|
Power Supply |
230VAC 50/60Hz single phase |
|
Power Requirement |
1,000W |
|
Air Pressure |
0.49 ~ 0.59MPa |
|
Dimensions |
790 (W) x 1,200 (D) x 1,800 (H) mm |
|
Weight |
250kg |
