Description

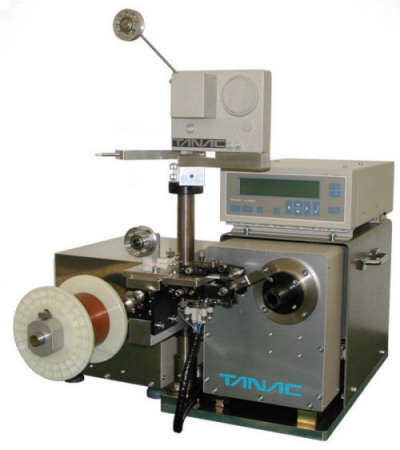

The perfect machine for perfect layer winding. Originally developed for square wire winding, the spindle is mounted on the winding traverse and passes by the fixed wire guide. This gives maximum stability for both the component and the wire.
Some of the advantages of square wire:
The special patented wire guide system maintains perfect control of the wire, and most importantly for square wire, prevents any twisting. The guide automatically moves clear of any bobbin flange and reverses the wire control direction at the end of a layer.
On-
The wire feeding system maintains a constant tension on the winding wire by controlling the supply spool speed using the feedback system of the wire tensioning unit.
Any twisting of the wire is prevented as the supply spool is rotated. This also makes this system excellent for winding other materials such as fibre optic line or fishing line and can be used with other models of TNK machines such as the AX2 single spindle.
Specification
|
SX Wire Winding Machine |
Maximum Bobbin Outer Ø |
150mm |
Maximum Winding Width |
100mm |
Winding Wire Range |
0.01 ~ 1.0mm |
Spindle Motor |
Induction motor 400W |
Spindle Speed |
10,000/4,000/1,400rpm 3- |
Traverse Motor |
AC Servo motor 100W |
Maximum Traverse Speed |
80mm/s |
Traverse Pitch |
0.001 ~ 9.999mm |
Internal Memory |
999 pages |
Input Method |
Sheet switch |
Display |
4 line LCD with backlight |
External Interface |
RS232C for program transfer. 8 bit IO sequencer |
Safety Cover |
Up / Down opening |
Power Supply |
230VAC 50/60Hz single phase |
Power Requirement |
600W (standard) |
Dimensions |
300 (W) x 430 (D) x 650 (H) mm |
Weight |
55kg |
|
WF Wire Feeding Machine |
Maximum Wire Speed |
2.9m/s |
Acceleration / Deceleration |
1m/s² |
Spool Holding Shaft o.d. |
20 / 34mm |
Feeding Motor |
AC Servo 200W |
Power Supply |
230VAC 50/60Hz single phase |
Power Consumption |
300W |
Dimensions |
230 (W) x 260 (D) x 500 (H) mm |
Weight |
18kg |
|
BT Wire Tensioner |
BT50 |
5 ~ 50g |
BT100 |
50 ~ 100g |
BT300 |
30 ~ 300g |
BT800 |
100 ~ 800g |
BT2000 |
250 ~ 2000g |
