Description

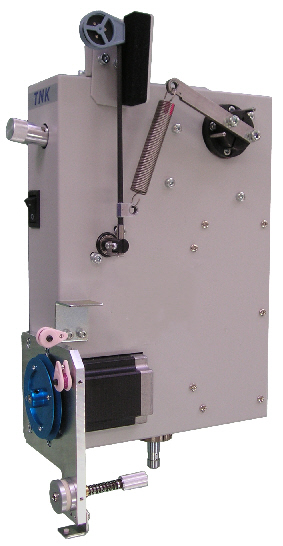

The pulse wire tension unit uses the wire feeding method for high speed winding control. Tension can be set through the winding machine program or by manual adjustment.



The feedback system will monitor the tension and make changes to the feeding speed to maintain the set tension level even during rapid acceleration and to prevent any sudden change in the tension when winding non-round shaped coils.



Two models covers a wide range of tension values for maximum efficiency and cost-effectiveness while still giving fine control of tension adjustment.



Specification

Model

PCT300TC

PCT600TC

Tension (g)

3~300

3~600

Wire (mm)

0.018 ~ 0.22

0.018 ~ 0.31

Wire speed max. (m/s)

6

6

Dimensions (mm)

220 x 170 x 70

220 x 170 x 70

Weight (kg)

3

3

Power

24VDC 3A

24VDC 4A
