MDC01 Coil Winding Machine

Description

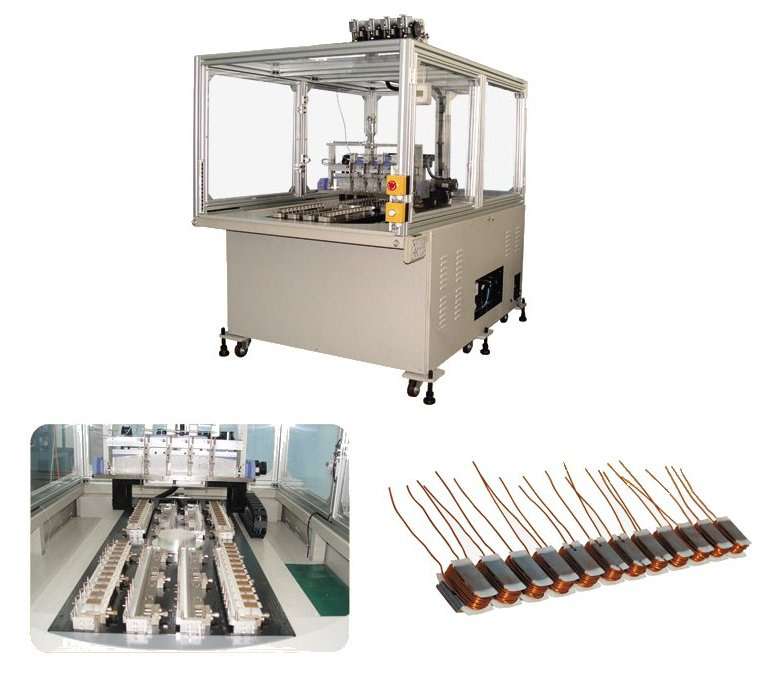

The MDC01 is a fully automatic CNC winding machine in a large wrapping format for the production of chained phase open pole stators.



The stator is opened out so it can be laid on the winding machine as a continuous chain of poles. Three or four stators can be wound simultaneously depending on the stack size. The chain is rolled up to form the completed stator after winding.



This winding style gives improved efficiencies in motor operation and production by reducing material costs, size and weight. This has a huge benefit on the environmental impact of the motor during manufacture and service.



The balanced design and insulated structure of the MDC01 allows for high speed production while maintaining quality and reliability through minimum vibration.



AC servo motors give fast and reliable positioning of the wire guide.



TNK's G2 controller with PC interface gives a graphical programming environment that will be familiar for any computer user and machine programmer.



Other options are available including bonding and wire stripper unit.



Specification

Number of Stators

3 or 4

Maximum Stator Outer Ø

120 or 90mm

Maximum Winding Width

360mm

Maximum Stack Height

70mm

Winding Wire Range

Up to 2mm

Movement of Traverse

X : 120mm / Y : 360mm / Z : 70mm

Maximum Traverse Speed

250mm/s

Power Supply

230VAC 50/60Hz single phase

Power Requirement

1,350W

Air Pressure

0.49 ~ 0.59MPa

Dimensions

1,200 (W) x 1,800 (D) x 1,600 (H) mm

Weight

800kg
