Description

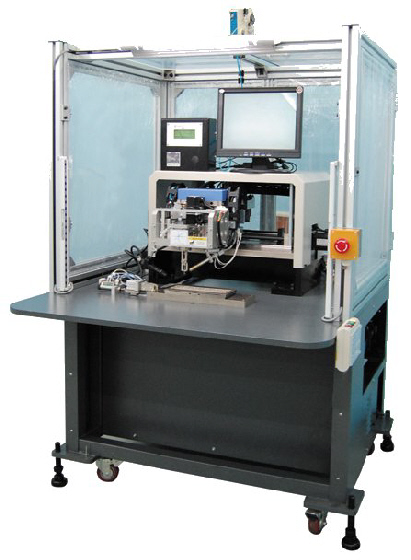

The FCW02 is a fully automatic 1-
Options include the addition of hot-
AC servo motors give fast and reliable positioning of the spindle and wire guide.
TNK's G2 controller with PC interface gives a graphical programming environment that will be familiar for any computer user and machine programmer.
Specification
Maximum Coil Outer Ø |
50mm | |
Maximum Winding Width |
50mm | |
Winding Wire Range |
0.018 ~ 0.4mm | |
Maximum Spindle Speed |
5000rpm | |
Movement of Traverse |
X : 150mm / Y : 250mm / Z : 110mm | |
Maximum Traverse Speed |
250mm/s | |
Direction of Traverse |
Horizontal / Vertical / +45° | |
Power Supply |
230VAC 50/60Hz single phase | |
Power Requirement |
1500W | |
Air Pressure |
0.49 ~ 0.59MPa | |
Dimensions |
1,800 (W) x 1,200 (D) x 1,600 (H) mm | |
Weight |
400kg |
