Description

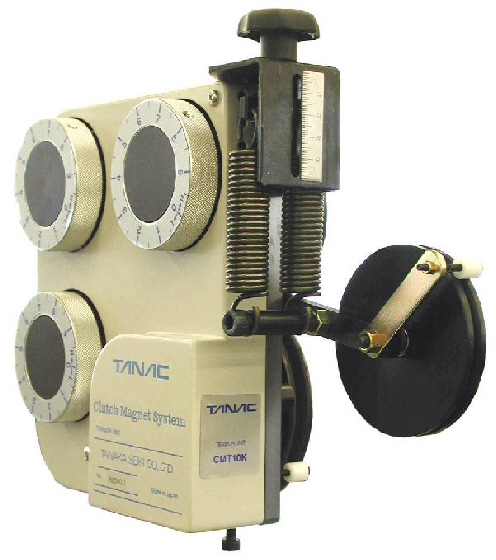

TNK is the original designer of the PATENTED magnet tension unit for coil winding. The tension from traditional friction type tension units can vary after a short time giving inconsistent winding characteristics.



The high quality Japanese magnet system in the TNK units ensures the set tension remains constant and stable which improves product quality and overall efficiency. This magnet system works together with the tension bar to prevent any sudden change in the tension when winding non-round shaped coils.



The various models cover a small range of tension values to give fine control of tension adjustment for more accurate setting. A tension cancel mechanism makes it easy to adjust the tension dials.



The clutch system can be controlled by the winding machine or by the operator using a footpedal. The clutch releases the tension making it easy to pull the winding wire.



Specification

Model

CMT3K

CMT6K

CMT10K

Tension (kg)

2.9

(0.8mm wire)

6

(1.2mm wire)

10.0

(1.6mm wire)

Wire (mm)

0.25 ~ 0.8

0.35 ~ 1.3

0.8 ~ 3.0

Wire speed max. (m/s)

10

10

7

Dimensions (mm)

110 x 90 x 195

100 x 310 x 255

100 x 245 x 295

Weight (kg)

3

5

6

Power

24VDC 12W
