Description

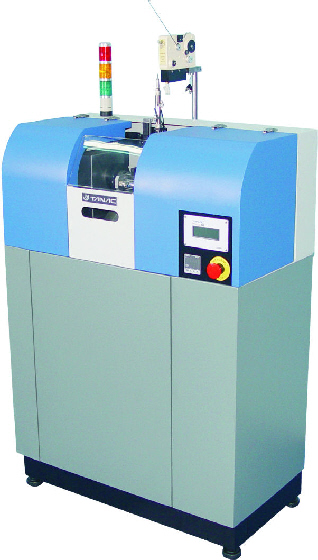

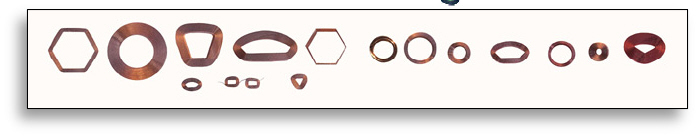

The BX series are fully automatic CNC winding machines for bobbinless coils.
The balanced design and insulated structure of the BX series allows for high speed production while maintaining quality and reliability through minimum vibration and heat transfer.
AC servo motors give fast and reliable positioning of the spindle and wire guide.
Both the headstock and tailstock spindles are synchronously driven to allow winding of microscopic coils.
Easy adjustment of the winding width by standard micrometer setting or optional programmable tailstock which can also follow the wire guide from the headstock on the first winding layer.
TNK's G2 controller with PC interface gives a graphical programming environment that will be familiar for any computer user and machine programmer.
Other options are available including alcohol bonding, linear ejecting, wire skeiner, and wire stripper unit.
Specification
Model |
BXC05 |
BXC06 |
Number of Spindles |
1 | |
Maximum Coil Outer Ø |
20mm (50mm by discussion) | |
Minimum Coil Inner Ø |
1mm | |
Maximum Winding Width |
20mm | |
Winding Width Setting |
Micrometer |
Programmable |
Lead Length |
35 ~ 50mm | |
Lead Position |
Arbitrary | |
Winding Wire Range |
0.018 ~ 0.3mm (>0.3mm by discussion) | |
Winding Pitch Setting |
0.001mm | |
Wire Cutting |
Automatic punch | |
Spindle Speed |
5,000rpm | |
Spindle Positioning |
Programmable every 1° | |
Power Supply |
230VAC 50/60Hz single phase | |
Power Requirement |
1,700W | |
Air Pressure |
0.49 ~ 0.59MPa | |
Dimensions |
800 (W) x 500 (D) x 1,500 (H) mm | |
Weight |
230kg |
