Description

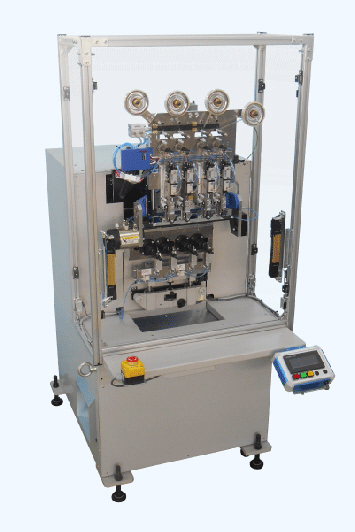

The AX40 is a fully automatic 4-
The balanced design structure of the AX40 allows for high speed production while maintaining quality and reliability through minimum vibration.
AC servo motors give fast and reliable positioning of the spindle and wire guide.
TNK's F1 controller with PC interface gives a graphical programming environment that will be familiar for any computer user and machine programmer.
It is possible to build up the automation line by using our quick loading/un-
Many other options are available including interleave and cover taping unit, air
cutter unit, wire skeiner unit, wire stripper unit, 4-
Specification
|
Maximum Rotation Ø |
50mm |
|
Maximum Winding Width |
90mm |
|
Winding Wire Range |
0.018 ~ 0.6mm* |
|
Spindle Motor |
AC Servo 750W |
|
Spindle Speed |
16,000/8,000/4,000rpm (choice) |
|
Spindle Positioning |
Programmable every 1° : Lock every 18° |
|
Traverse Motor |
AC Servo X,Z : 50W / Y : 100W |
|
Maximum Traverse Speed |
250mm/s |
|
Movement of Traverse |
X (left 45/right 45) : 90mm / Y (front/rear) : 90mm Z (up 65/down 15) : 80mm |
|
Direction of Traverse |
Horizontal / Vertical / +45° |
|
Power Supply |
230VAC 50/60Hz single phase |
|
Power Requirement |
1.5kW |
|
Air Pressure |
0.49 ~ 0.59MPa |
|
Dimensions |
900 (W) x 900 (D) x 1,800 (H) mm |
|
Weight |
250kg |
* larger wire by option with spindle motor upgrade and air cutters
