Description

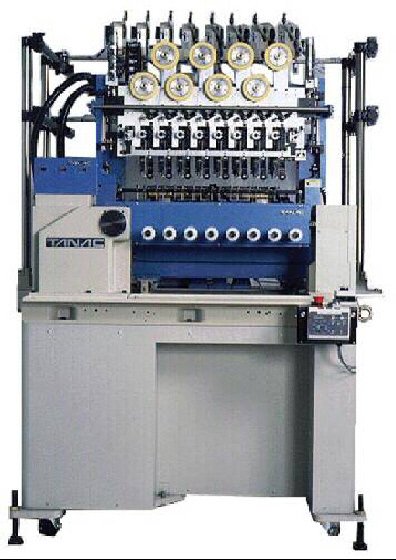

The AW series is a fully automatic 4-axis CNC multi-spindle coil winding machine which will terminate and wind the wire on the component.



The indexing spindle box gives a typical time of just 2 seconds between finishing a set of components and starting the next set. The machine operator or auto system can work on one side of the spindle box to load/un-load components while the machine continues winding components on the other side of the spindle box.



AC servo motors give fast and reliable positioning of the spindle and wire guide.

TNK's G2 controller with PC interface gives a graphical programming environment that will be familiar for any computer user and machine programmer.



It is possible to build up the automation line by using our quick loading/un-loading and the tooling transfer system.



Many other options are available including interleave and cover taping unit, air cutter unit, wire skeiner unit, wire stripper unit, 2-wire system, and tailstock.



Specification

* larger wire by option with spindle motor upgrade and air cutters
