Description

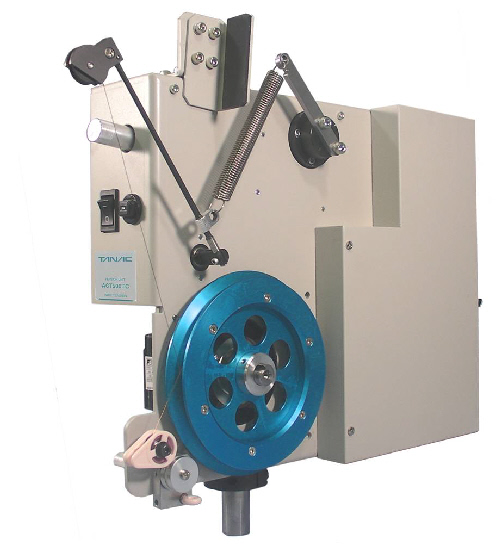

The servo wire tension unit uses the wire feeding method for high speed winding control. Tension can be set through the winding machine program or by manual adjustment.
The feedback system will monitor the tension and make changes to the feeding speed
to maintain the set tension level even during rapid acceleration and to prevent any
sudden change in the tension when winding non-
One model covers a wide range of tension values for maximum efficiency and cost-
Specification
Model |
ACT500TC |
Tension (g) |
3~500 |
Wire (mm) |
0.015 ~ 0.28 |
Wire speed max. (m/s) |
25 |
Dimensions (mm) |
310 x 335 x 100 |
Weight (kg) |
9 |
Power |
24VDC |
