Taping Machines

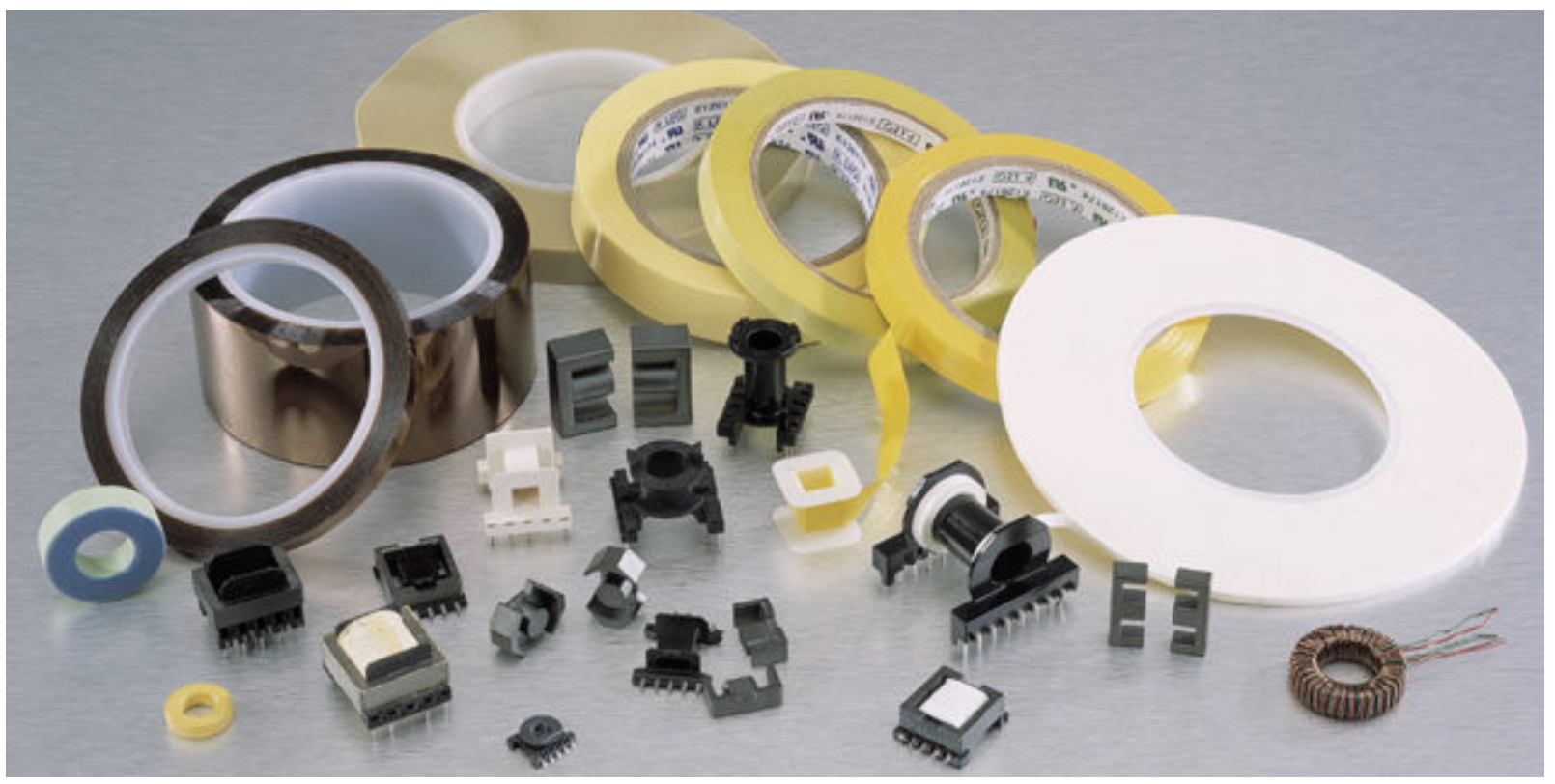

The TP300 taping machine can be used for either

- barrier or margin taping

- cover taping

Either version can also be converted to give the other function through the purchase of additional parts.

The AC servo motor gives quick and accurate positioning of the tape start position and end position.

Connection to a personal computer through the USB port is used to upload and download programs for extra program storage capacity.

Programming is made easy through the on-line programming feature. The PC software can show various information such as taping turns count and production count.


TP300
Coil diameter for taping 4 ~ 40mm
Maximum rotation diameter 70mm
Cover tape width 3 ~ 40mm
Barrier tape width 1.6 ~ 8mm
Tape reel Inner 3" / Outer 6"
Spindle speed Maximum 1,000rpm
Spindle motor AC servo
Workpiece Supply & Discharge Manual loading / unloading
(Option automatic loading / unloading)
Safety protection Various options according to regulations
Power supply voltage (AC V) φ1 AC200 ~ 230V ±10% 50Hz/60Hz
Air supply pressure (MPa) 0.5MPa (0.49 ~ 0.59)
Dimensions (mm) 450(W) 680(D) 450(H)
Mass 30kg
Driving Controls & Units Touch Panel / F1 Controller
