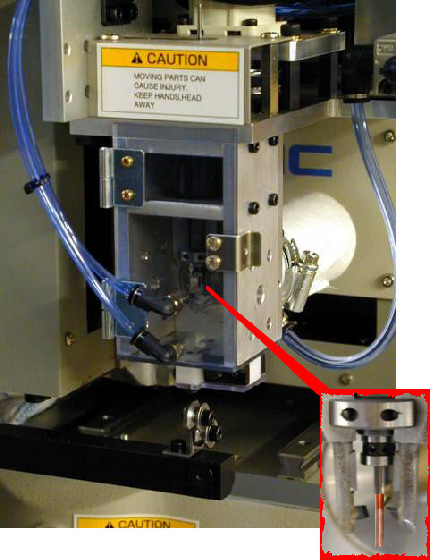

Wire Stripper Unit

Adjustable stripper blades allow precise control over the winding wire insulation layer.

Diamond blades give a strong cutting edge and exceptional wear resistance.

Programmable stripper rotation speed gives extra control over the insulation removal.

Built-in dust removal keeps the stripper head and winding wire clear of debris.

The programmable dust removal operation reduces noise levels and power requirements.


WS
Winding wire size range Ø0.2 to 0.75 mm
0.75 to 1.0mm (option)
Spindle motor AC servo
Spindle speed Maximum 10,000rpm
Power supply voltage (AC V) φ1 AC200 ~ 230V ±10% 50Hz/60Hz
Air supply pressure (MPa) 0.5MPa (0.49 ~ 0.59)

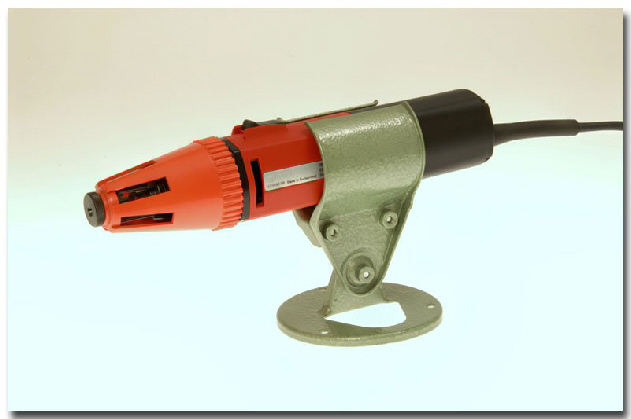

A hand-held wire stripper is also available for use with the AX model machines.

This unit has built in speed control and can be supplied with accessories like bench mount, footpedal, and wire guide.
